Scott's Photographica Collection

Hensoldt Tami Pocket Microscope



The respected optical goods manufacturer, Hensoldt of Wetzlar, Germany first introduced the Tami microscope in 1920.  Tami is a contraction of the German word taschenmikroskop, meaning pocket microscope.  The Tami is a solid and rugged instrument designed for field work.  This example has seen some use, but still delivers a clear, sharp image.

Serial number 6234 is engraved in the cover.  The microscope when collapsed is 4 inches tall, its height with both tubes extended is 7 1/2 inches (approximately).  The Tami uses a double drawtube for variable magnification and has micrometer screw focus.  The stage is a sealed removable unit consisting of a heavy glass plate with a small concave mirror fixed below, set into a metal cylindrical mount.  The stage can be rotated for best illumination.  The sturdy brass cover is quite heavy, so the total weight is nearly one pound.

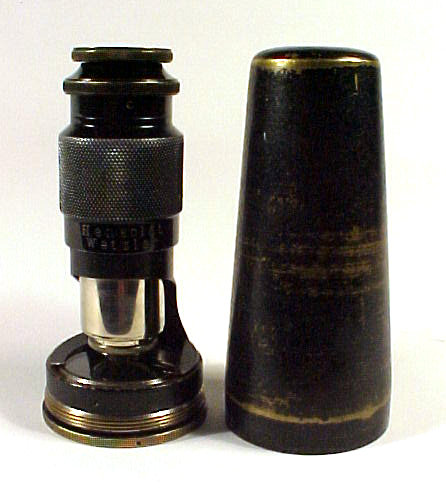

Tami Microscope with cover removed

Tami Microscope in collapsed position with its cover

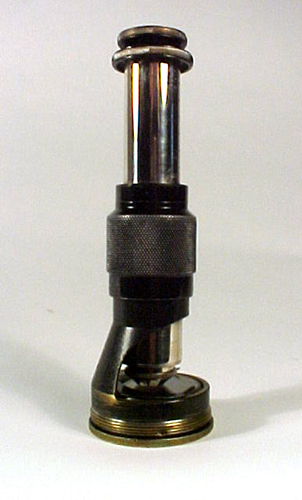

Side view of Tami Microscope with tube extended

Side view of Tami Microscope with one drawtube extended

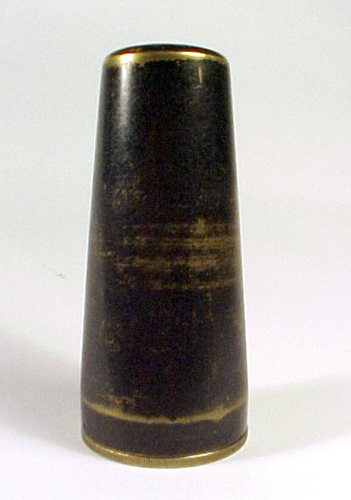

Tami Microscope stowed in its cover

Tami Microscope stowed in its cover

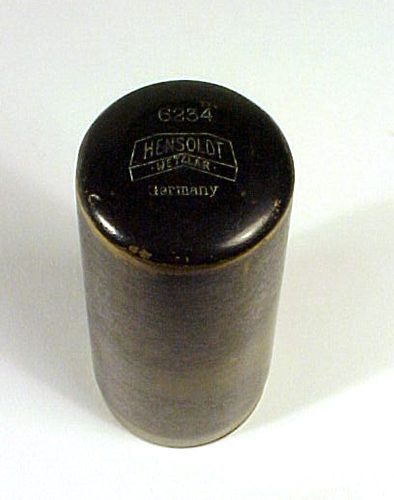

Top view of Tami Microscope cover

Top view of Tami Microscope cover

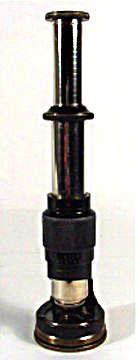

Tami Microscope fully extended

Tami Microscope fully extended


This item was offered for sale/trade.  It is no longer available.
